Pre-made Pouch Rotary Powder Packaging Machine

Introduction

SGD6-200/300 automatic pre-made pouch rotary packaging machine is self-developed by AllPack Automation. This pouch packing machine model is designed for pre-made flat bag or stand-up pouch Without Zipper At Bag Top Side. The rotary packing machine can realize automatic pouch feeding, date printing, bag opening, material weighing filling, bag heat sealing and finished bag take-off. We have two machine models for customer reference depending on the packing material and bag size. Now doypack machine unit is very popular in snack food / grains / seeds / chemical granular packaging area.

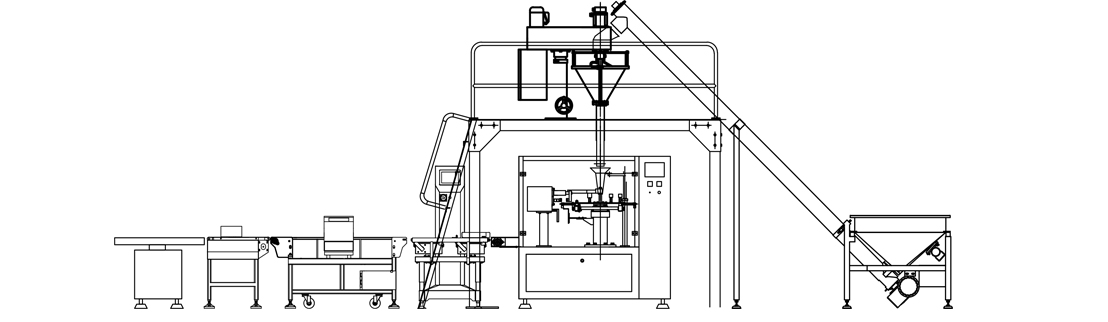

Configuration

Function & Features

◆ Realize Automatic Bag Feeding / Date Printing / Bag Opening / Material Weighing Filling / Heat Sealing / Finished Products Take-off;

◆ Adopting Siemens PLC Control & Touch Screen Operating, Easy To Handle & Operate, Facilitate Workers;

◆ The Whole Machine Frame Is Made Of SS304 Food Level Stainless Steel Which Is Easy To Clean And Maintain;

◆ The Machine Can Be Equipped With Multi-Head Weigher Or Linear Weigher For Packing Different Features Material;

◆ The Machine Can Connect With Weight Checker & Metal Detector To Form Whole Packaging Line;

Working Flow

Detail Analysis

Station 1 : Feed many pouches or bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

Station 2 : Ribbon printer, Ink-jet printer for optional

Station 3 : Using air to open the bag, and an opening detection device inserts into the opened bag to expanding it and detect if it is open or not.

Station 4 : There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not. No open no filling no sealing.

Station 5 : To seal the bag with a couple of heat sealing air bar.

Station 6 : To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.

     ◆ All The Machine Shall Be Packed In Export Wooden Box;

     ◆ Engineers Are Available To Do Service Abroad;

     ◆ Training & Technical Instructing Lessons Shall Be Provide During Installation;

     ◆ Video Instruction Installation Is Also Available If Customer Have Professional TechnicalEngineers;

     ◆ One Year Warranty Is Provided For Customers.
