SGJ-ZX Bagging Packaging Machine Line

Introduction

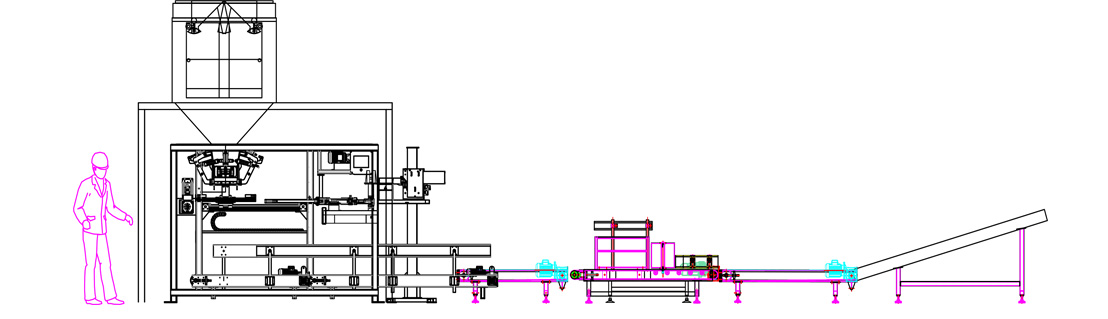

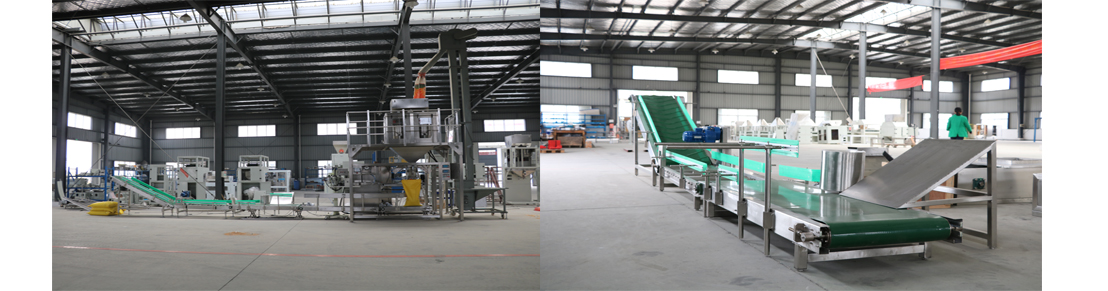

SGJ-ZX bagging packaging machine unit is composed of semi-auto weighing machine, automatic conveying system, automatic bag folding device, automatic labeling device, automatic sewing device, automatic bag pushing down device & automatic bag shaping conveying system. The manual bagging machine unit can also connect with robot palletizing system and pallet bank system to form whole packaging palletizing line. This semi-automatic bagging machine unit is now widely adopted by farmland owners for grains packaging. And it also applicable for seeds, feed mill, chemical granular products.

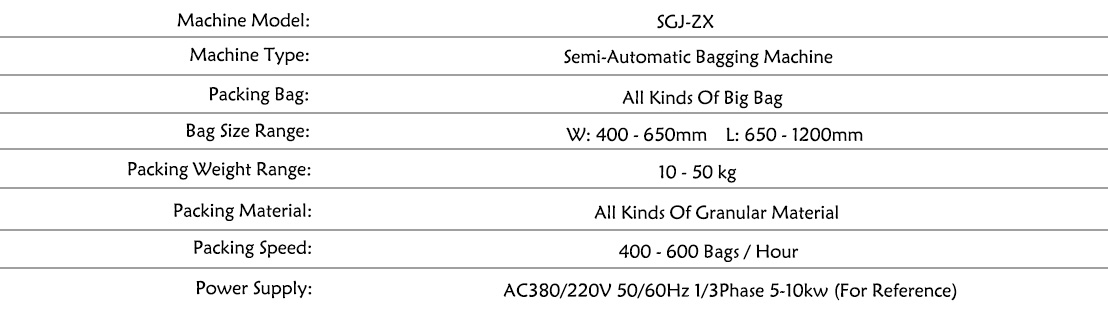

Configuration

Function & Features

◆ The Machine Unit Is An Simplified System From SGJ-ZD Fully Automatic Heavy Bag Bagging Machine, It Shall Just Need One Person To Feed On The Bag;

◆ Adopting Siemens PLC Control System, Siemens Touch Screen Operating Which Shall Greatly Facilitate The Customer In Machine Using And Operating;

◆ The Whole Machine Frame Is Made Of SS304 Stainless Steel Which Has Good Appearance & Easy For Cleaning;

◆ The Whole Machine Is Small In Size And Take Less Installation Space;

◆ The Machine Unit Can Realize Manual Bag Feeding, Automatic Weighing Filling, Automatic Conveying, Automatic Bag Mouth Folding Sewing, Automatic Bag Pushing Down & Automatic Bag Shaping Conveying;

Transportation & After-Service

       ◆ All The Machine Shall Be Packed In Export Wooden Box;

      ◆ Engineers Are Available To Do Service Abroad;

      ◆ Training & Technical Instructing Lessons Shall Be Provide During Installation;

      ◆ Video Instruction Installation Is Also Available If Customer Have Professional Technical Engineers;

       ◆ One Year Warranty Is Provided For Customers.
