SGJ-RB Fully Automatic Secondary Packing Machine Line

What Is Automatic Secondary Packaging Machine ?

Automatic Secondary Packaging Line is consisted of one set of secondary packaging device and 1 or 2 sets automatic vertical packaging machine to form a whole set  small bag pack in big bag packaging line. The packaging machine line realizes the function from small bag forming and packing to packing small bag into woven bag  and sewing the bag. Finishing all the work in one process line, the machine unit greatly help factory to cut down the basic cost and also increase the working efficiency. This kind of bag in bag packing type is greatly adopted in food, seeds, fertilizer & chemical products area and become the first choice of many big companies.

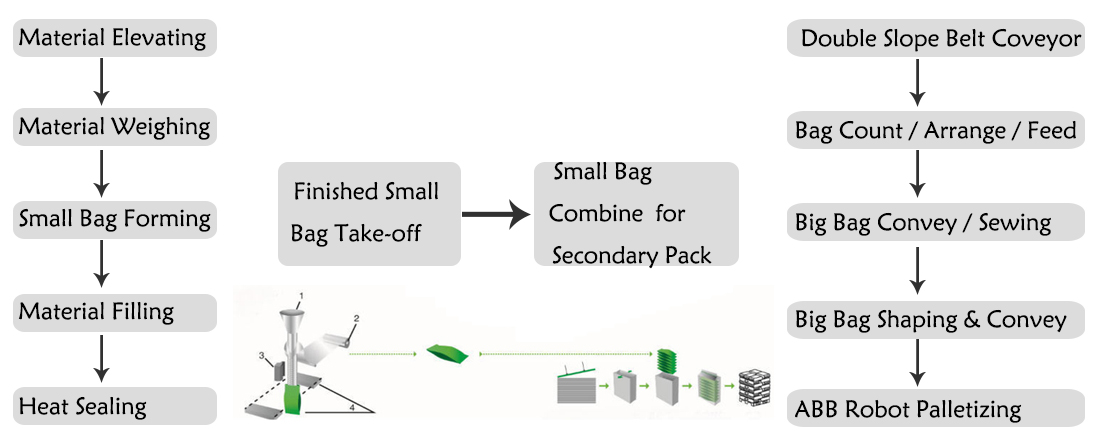

How Does Bag in Bag Packing Machine Working ?

Automatic Secondary Packaging Machine Line Can Be Devided Into Two Working Lines:

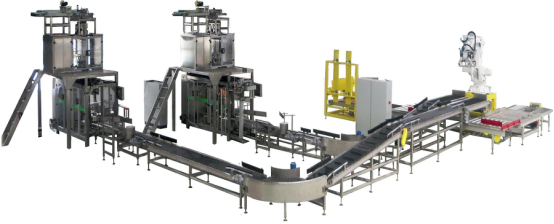

Configuration of Whole Set Line

◆ Packing Material: Seeds / Grains / Washing Detergent or Similar Granular Material

◆ Packing Weight: 500 - 5000g (Small Bag)

◆ Bag Type: Pillow Type Bag / Back Seal Bag

◆ Bag Locating Style: Single Row / Double Row / Vertical Row (Depends on Exact Needs.)

◆ Packing Speed: 60 - 120 Bags Per Minutes (Front Line Out-put Speed)

                               6 - 10 Bags Per Minutes (Big Bag Out-put Speed)

◆ Power Supply: AC380V / 220V  50 / 60 Hz 3Phase 20kw (Customized)

◆ Machine Size: Customized According to Customer Present Situation

Standard Features of Secondary Packaging Machine

◆ Adopting Siemens PLC Controlling System & Touch Screen Operating;

◆ Using Imported Electrical Spare Parts, Ensuring Stable Working Performance;
◆ Customized Design For Better Fitting Customer Workroom Space;

◆ Human Friendly Operating Interface Which Is Easy, Safe And Reliable To Operate;

◆ Fast Packing & Re-packing Speed Creates Big Production Capacity And Saves Great Labor Cost;

Working Principle Analysis of Bag In Bag Packaging Machine

◆ Combination Conveyor: Combination of the small bags comes out of two vertical packaging machine.

◆ Guiding Conveyor: To guild the small bag into right direction and prepare for moving to next step.

◆ Double Slope Conveyor: To shaping the bag and make it flat and guiding into line.

◆ Acceleration Conveyor: To counting the bags and convey small bags into chamber according to set.

◆ Bag Arranging Device: To locate the bag as single row or double row or customized.

◆ Secondary Packaging Device: Automatically pick up the bag and feed on the machine.

◆ Sewing Machine: Automatically sewing the bag or can equip with other device to form different kind of sealing.
