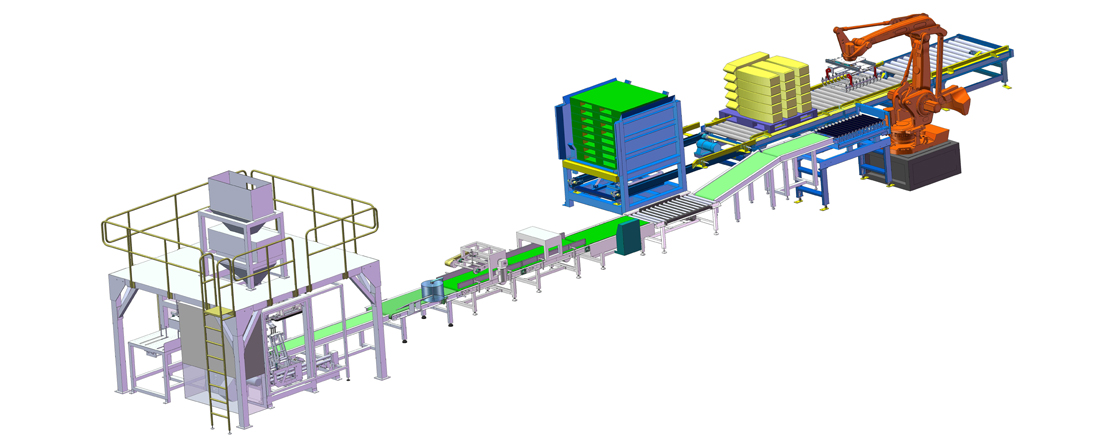

SGJ-ZD Automatic Big Bag Bagging Packaging & Palletizing Line

Configuration

    ◆ Weighing Range: 10kg - 50kg (For Reference)

    ◆ Packing Speed: 500 - 800 Bags / Hour (For Reference)

    ◆ Weighing Accuracy: ≤±0.1%~0.3%

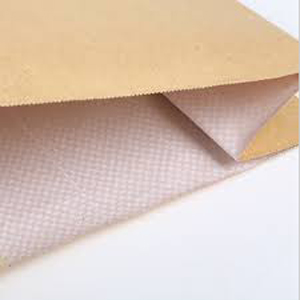

    ◆ Packing Bag: PP Woven Bag / Kraft Paper Bag / Plastic Bag

    ◆ Bag Size Range: Width: 400 - 650mm  Length: 750 - 1060mm

    ◆ Power Supply: AC380V/220V 50/60Hz 3Phase 10kw (For Reference)

Brief Introduction

SGJ-ZD automatic bagging packaging & palletizing machine unit is an machine which can be used for packing 10 - 50KG material into big sack or woven bag. The bagging machine unit adopts automatic bag feeding device which can feed bag automatically. And for the material weighing, filling, bag conveying, bag mouth folding, sewing, bag pushing down, bag shaping & robot palletizing shall all accomplished by this bagging machine automatically.

SGJ-ZD automatic bagging packaging & palletizing machine is self-developed by AllPack Automation for packing different kinds of products. Since then, This robot palletizing system has performed well in agriculture / foods / animal Feed / chemical fertilizer / construction material etc. Especially the fertilizer bagging machine & feed mill bagging machine have been adopted by many famous international group enterprises like New Hope Group / Tongwei Group / Kingenta Group / Sinopec Group Etc.

Features

    ◆ Customized Design To Connect With Customer's Front Line Hopper Or Machinery Directly;

    ◆ Automatic Weighing System Shall Adopt Mettler Toledo Load Cell Which Ensuring Best Weighing Accuracy;

    ◆ Self-Developed Bag Bank Can Store Over 400 Bags Per Time;

    ◆ Adopting Siemens PLC Control & Touch Screen Operating Which Is Easy And Reliable To Handle;

    ◆ The Sealing System Can Be Customized Accordingly (Heat Sealing / Sewing / Labeling / Bag Folding);

    ◆ The Bagging Machine Unit Shall Realize The Function Of Auto Weighing, Filling, Bag Feeding, Clamping, Conveying and Sewing

       Stablely;

    ◆ The Automatic Bagging Machine Shall Be Sealed With Tempered Glass Door For Ensuring Safety Working Environment;

    ◆ The Bagging Machine Unit Is Equipped With Alarm System And The Machine Shall Stop Running Once Alarm Appears.

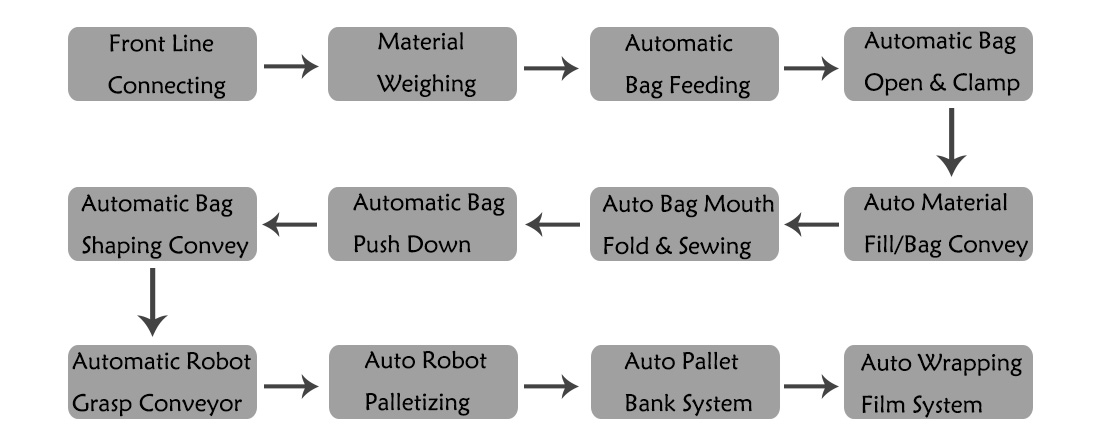

Working Flow

Send An Email To Us ! The Fastest Way To Get Pricing And

Additional Information.

Email: packingmachines@vip.163.com

                                              Transportation & After-Service

       ◆ All The Machine Shall Be Packed In Export Wooden Box;

      ◆ Engineers Are Available To Do Service Abroad;

      ◆ Training & Technical Instucting Lessons Shall Be Provide During Installation;

        ◆ Video Instruction Installation Is Also Available If Customer Have Professional Technical Engineers;

        ◆ One Year Warranty Is Provided For Customers.
